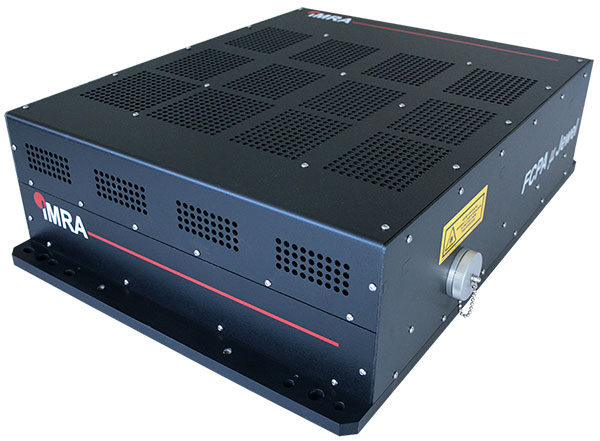

DX Series
High Pulse Energy Femtosecond Fiber Lasers
The DX Series offers sufficient pulse energy for selected material processing in a compact form factor. Harmonic generation packages, which convert its output to visible wavelengths, are available.
Product Features:
- Factory set up to 5 MHz repetition rate available
- Air-cooled, water-cooled
- Regulatory certifications available
- Mechanical reliability complies with MIL-STD-810F and IEC 60601 standards
- Remote diagnostic testing and in-field configuration
Laser Specifications:
Wavelength:
Average Power:
Pulse Duration:
Pulse Energy:
M²:
Repetition Rate:
DX0210
1045 nm
≥ 2 W
≤ 450 fs
≥ 10 µJ
≤ 1.3
100 kHz
DX0320
1045 nm
≥ 3 W
≤ 450 fs
≥ 20 µJ
≤ 1.3
100 kHz
DX0540
1045 nm
≥ 5 W
≤ 450 fs
≥ 40 µJ
≤ 1.3
100 kHz
- Pulse Select: Allows users to select up to 15 pre-set repetition rate values; typical pre-select repetition rates range from 100 kHz to 5 MHz
- Pulse Pick: From an on-demand single pulse to standard pulse repetition rate
- Pulse Flex: A combination of Pulse Select and Pulse Pick; offers the possibility to operate the laser from an on-demand single pulse all the way up to 5 MHz
- Burst Mode: Provides bursts of pulses within predetermined boundary conditions
- Harmonic Module: Convert near infrared output to visible wavelengths
