F / G / H Series
Compact Femtosecond Fiber Laser
Based on proprietary Raman-shifting technology, the F/G/H Series delivers pulses with a clean shape and spectrum at the unique wavelengths of 1620 and 810 nm. The compact form of this series enables possibilities for the use of femtosecond lasers in clinical and industrial settings. Target applications include multiphoton fluorescence microscopy, second harmonic imaging, and Terahertz spectroscopy.
Features:
- HX-150 offers continuously adjustable power at dual wavelengths
- Compact and robust design for easy integration
- Mechanical reliability complies with MIL-STD-810F and IEC 60601-1 standards
- Regulatory certifications available
Laser Specifications:
Wavelength:
Average Power:
Pulse Duration:
Repetition Rate:
Dimensions (mm3):

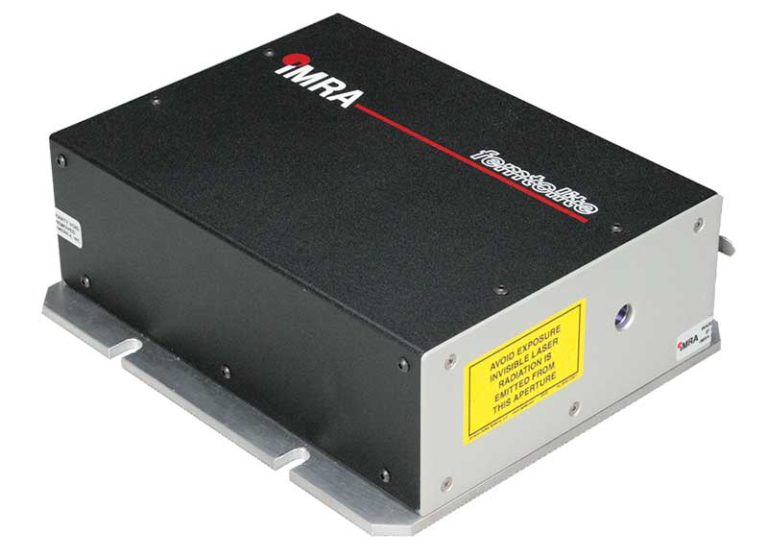

FX100
805 nm
≥ 100 mW
≤ 120 fs
75 MHz
230 x 193 x 76
FX150
810 nm
≥ 150 mW
≤ 140 fs
75 MHz
230 x 193 x 76
GX200
1620 nm
≥ 200 mW
≤ 100 fs
75 MHz
230 x 193 x 76
HX150
810 nm
≥ 150 mW
≤ 140 fs
75 MHz
230 x 193 x 76
HX150
1620 nm
≥ 200 mW
≤ 200 fs
75 MHz
230 x 193 x 76
